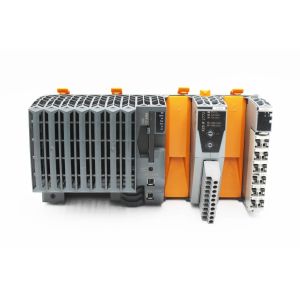

X20CP3484 B&R X20 SYSTEM PLC CPU MODULE Intel Celeron 266 Performance With Additional I/O Processor

Brand Name : B&R

Model Number : X20CP3484

Certification : COC

Place of Origin : Austria

MOQ : 1EA

Price : USD

Payment Terms : T/T

Supply Ability : 10EA

Delivery Time : 3-5 days

Packaging Details : Original

Product Name : B&R

Product Model : X20CP3484

Product Type : CPU module

ID code : 0x23A6

Internal I/O : 0.6 W

Input voltage : 24 VDC -15% / +20%

Dimensions : 200*99*85 mm

Warranty : 1 Year

Contact Now

X20CP3484 B&R X20 SYSTEM PLC CPU MODULE Intel Celeron 266 Performance With Additional I/O Processor

MATERIAL NUMBER:

X20CP3484

DESCRIPTION:

Intel Celeron 266 Performance with additional I/O processor
Ethernet, POWERLINK and USB onboard
3 slots for modular interface expansion
CompactFlash as removable application memory
Fan-free
Extremely compact

The X20CP3484 is the smallest Celeron based CPU for the X20 System. However, its shortest cycle time of 800 µs still shows its power. The basic features are the same as those of the larger types.

Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. There are also three multi-purpose slots for additional interface modules.

The CPU models X20CP3484 and X20CP3484-1 differ only by SDRAM size.

Short description

Interfaces	1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
System module	CPU

General information

B&R ID code	0x23A6
Cooling	Fanless
Status indicators	CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery
Diagnostics
Battery	Yes, using LED status indicator and software
CPU function	Yes, using LED status indicator
CompactFlash	Yes, using LED status indicator
Ethernet	Yes, using LED status indicator
POWERLINK	Yes, using LED status indicator
Overtemperature	Yes, using LED status indicator
Diagnostics - Fan	-
Support
ACOPOS support	Yes
Visual Components support	Yes
Power consumption without memory card, interface module and USB	10.5 W
Internal power consumption of X2X Link and I/O power supply
Bus	1.42 W
Internal I/O	0.6 W
Additional power dissipation caused by actuators (resistive) [W]	-
Electrical isolation
IF1 - IF2	Yes
IF1 - IF3	Yes
IF1 - IF4	No
IF1 - IF5	No
IF1 - IF6	Yes
IF2 - IF4	Yes
IF2 - IF5	Yes
IF3 - IF4	Yes
IF3 - IF5	Yes
IF4 - IF5	No
IF4 - IF6	Yes
IF5 - IF6	Yes
PLC - IF1	No
PLC - IF2	Yes
PLC - IF3	Yes
PLC - IF4	No
PLC - IF5	No
PLC - IF6	Yes
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

CPU and X2X Link power supply

Input voltage	24 VDC -15% / +20%
Input current	Max. 2.2 A
Fuse	Integrated, cannot be replaced
Reverse polarity protection	Yes

X2X Link power supply output

Nominal output power	7 W
Parallel connection	Yes
Redundant operation	Yes

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Fuse	Required line fuse: Max. 10 A, slow-blow

Output I/O power supply

Nominal output voltage	24 VDC
Permissible contact load	10 A

Power supply - General information

Status indicators	Overload, operating status, module status, RS232 data transfer
Diagnostics
RS232 data transfer	Yes, using LED status indicator
Module run/error	Yes, using LED status indicator and software
Overload	Yes, using LED status indicator and software
Electrical isolation
I/O supply - I/O power supply	No
CPU/X2X Link supply - CPU/X2X Link power supply	Yes

Controller

CompactFlash slot	1
Real-time clock	Nonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C
FPU	Yes
Processor
Type	Celeron 266 (compatible)
L2 cache	-
L1 cache for data and program code	2x 16 kB
Integrated I/O processor	Processes I/O data points in the background
Modular interface slots	3
Remanent variables	Max. 64 kB
Shortest task class cycle time	800 µs
Typical instruction cycle time	0.007 µs
Data buffering
Battery monitoring	Yes
Lithium battery	At least 3 years
Standard memory
RAM	32 MB SDRAM
User RAM	1 MB SRAM

Interfaces

Interface IF1
Type	RS232
Variant	Connection via 12-pin terminal block TB12
Transfer rate	Max. 115.2 kbit/s
Interface IF2
Type	Ethernet
Variant	Shielded RJ45
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	10/100 Mbit/s
Interface IF3
Fieldbus	POWERLINK V1/V2
Type	100BASE-T (ANSI/IEEE 802.3)
Variant	Shielded RJ45
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Interface IF4
Type	USB 1.1
Variant	Type A
Max. output current	0.5 A
Interface IF5
Type	USB 1.1
Variant	Type A
Max. output current	0.5 A
Interface IF6
Type	X2X Link master
Quantity	1

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	0 to 55°C
Vertical mounting orientation	0 to 50°C
Derating	-
Storage	-25 to 70°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order application memory (CompactFlash) separately Backup battery included in delivery X20 end cover plate (right) included in delivery 12-pin X20 terminal block included in delivery Interface module slot covers included in delivery
Dimensions
Width	200 mm
Height	99 mm
Depth	85 mm
